Nanoparticles for Therapeutic Vehicles-Liposomes

Liposomes can be defined as spherical microscopic vesicles composed of one or more phospholipid bilayer membranes. Its inner core is composed of the hydrophilic part of phospholipids, so hydrophilic molecules can be incorporated in it. For lipophilic molecules, they are more embedded in the lipids of the phospholipid bilayer. So far, many types of liposomes have been prepared. The difference between each type is mainly related to the lipid composition of the liposome structure, the size of the vesicle, and the charge on the surface of the liposome.

The structure of liposomes is similar to that of biological membranes, which are also called artificial biological membranes, and are widely used to study the structure and function of biological membranes. Liposomes as drug carriers began in the early 1970s. Due to the advantages of liposomes' biocompatibility, biodegradability, non-toxicity and non-immunogenicity, liposomes are developing rapidly as new drug formulations. After decades of research, a variety of liposome preparations have been on the market. The drugs involved are doxorubicin hydrochloride, amphotericin, cell wall tripeptide, paclitaxel, gentamicin, cytarabine and so on. In addition, various types of liposomes under research, such as heat-sensitive, magnetic-sensitive, pH-sensitive, anti-drug resistance, active targeting, multifunctional liposomes, and liposomes of various administration routes such as Injections, lungs, nasal cavity, transdermal, oral, etc. emerge endlessly. The research of liposomes is becoming more and more extensive and in-depth.

Application of liposomes in the field of drug delivery

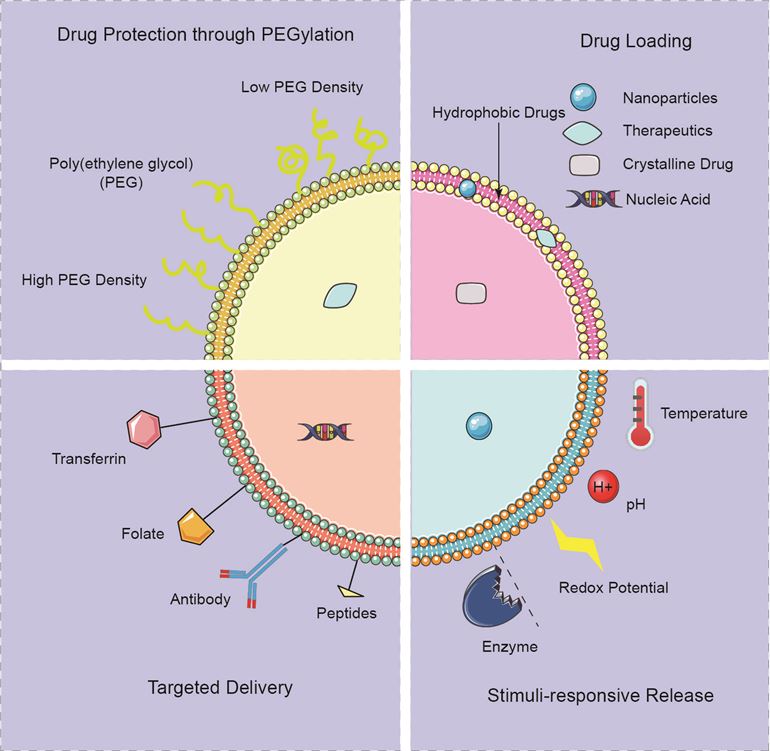

Figure 1. Application of liposomes in the field of drug delivery.

Liposomes can be divided into three types according to their shape and size: 1. Small unilamellar liposomes (SUV) are unilamellar vesicles with a particle size of 20-80nm; 2. Large unilamellar liposomes CLUV are unilamellar vesicles, The particle size is 100-1000nm; 3. The multilamellar bilayer vesicles are called multilamellar liposomes (MLV), and the particle size is 1-5pm. The drugs are distributed in different parts of the liposomes according to their solubility. The drug in the external water phase can only be counted as a free drug because it exists independently of the liposome. Some drugs, such as nucleic acids with negative charges, can be adsorbed on the surface of liposomes with positive charges, and they are also counted as liposome preparations.

Structural Components of Liposomes

The main structural components of liposomes are phospholipids and cholesterol.


Phospholipids are the main structural components of biological coverings. There are two types of phospholipids-phosphoglycerides and sphingolipids. The most common phospholipid is the phosphatidylcholine (PC) molecule. Phosphatidylcholine particles are insoluble in water and aqueous media. They are tightly arranged in a flat bilayer sheet to minimize the adverse effects between the bulk water phase and the long hydrocarbon fat series. Among them, glycerol and phospholipids are the most commonly used components in liposome preparations, accounting for more than 50% of the weight of biomembrane lipids. The most common phospholipids and their derivatives mainly include:

  • Phosphatidylcholine (lecithin, PC )
  • Phosphatidylethanolamine (cephalin, PE)
  • Phosphatidylserine (PS)
  • Phosphatidylinositol (PI)
  • Phosphatidylglycerol (PG)


Cholesterol itself does not form a double-layer structure, but can exist in the phospholipid membrane at a molar ratio concentration as high as 1:1 or even 2:1 of cholesterol to phosphatidylcholine. Cholesterol locates itself in the membrane with its hydroxyl group facing the hydrophilic surface, and the fatty chain is aligned parallel to the acyl chain in the center of the double layer. The high solubility of cholesterol in phospholipid liposomes is attributed to hydrophobicity and clear head group interactions, but there is no clear indication of the arrangement of cholesterol in the bilayer.

Liposomes can be divided into five types according to the work and mechanism of intracellular delivery:

  • Conventional liposomes
  • pH sensitive liposomes
  • Cationic liposomes
  • Immunoliposome
  • Long circulating liposomes

Conventional liposome

Conventional liposomes are liposomes synthesized based on the basic structure of liposomes. It is also the first time liposomes have been created for pharmaceutical applications. Conventional liposome preparations are mainly composed of natural phospholipids or lipids.

pH Sensitive Liposome

The design of pH-sensitive liposomes is based on the principle that viruses escape lysosomal degradation. Conventional liposomes can be easily adsorbed to the cell surface. After being fixed to the cell surface, liposomes are internalized into endosomes, where they encounter a pH that is more acidic than external intermediates, and then disintegrate and release the drug into the cell. In addition, due to the acidic microenvironment of tumor tissues, pH-sensitive liposomes can also specifically release tumor therapeutic drugs into tumor tissues.

Cationic Liposome

Cationic liposomes are liposomes with a positive charge, such as DOTMA. Since the nucleic acid substance is a negatively charged molecule, it can form a complex with the positively charged head group of the cationic liposome through ionic interaction. Then complete the delivery of nucleic acid molecules.


Immunoliposomes are immunoliposomes by combining drug-loaded liposomes with monoclonal antibodies or gene antibodies to form immunoliposomes. With the help of antibodies binding to target cell surface antigens or receptors, they are released, adsorbed, swallowed, Methods such as swallowing and fusion release encapsulated drugs to specifically kill target cells to achieve the purpose of treatment.

Long Circulating Liposomes

Since the long-circulating liposomes having a hydrophilic group and can prevent a number of different blood components bind with liposomes, thereby reducing the affinity mononuclear phagocyte system MPS may be present and circulating half-life prolonged stable , Increase its uptake by tumor tissues.

1. Hadis Daraee, et al.; Application of liposomes in medicine and drug delivery. Artificial Cells, Nanomedicine, and Biotechnology. 2014, 44:1, 381-391.
2. Immordino ML, et al.; Stealth liposomes: review of the basic science, rationale, and clinical applications, existing and potential. Int J Nanomedicine. 2006, 1:297.
3. Litzinger DC, et al.; Phosphatodylethanolamine liposomes: drug delivery, gene transfer and immunodiagnostic applications. Biochim Biophys Acta. 1992, 1113:201–227.
4. Weiner N, et al.; Liposomes as a drug delivery system. Drug Dev Ind Pharm. 1989, 15:1523–1554.
